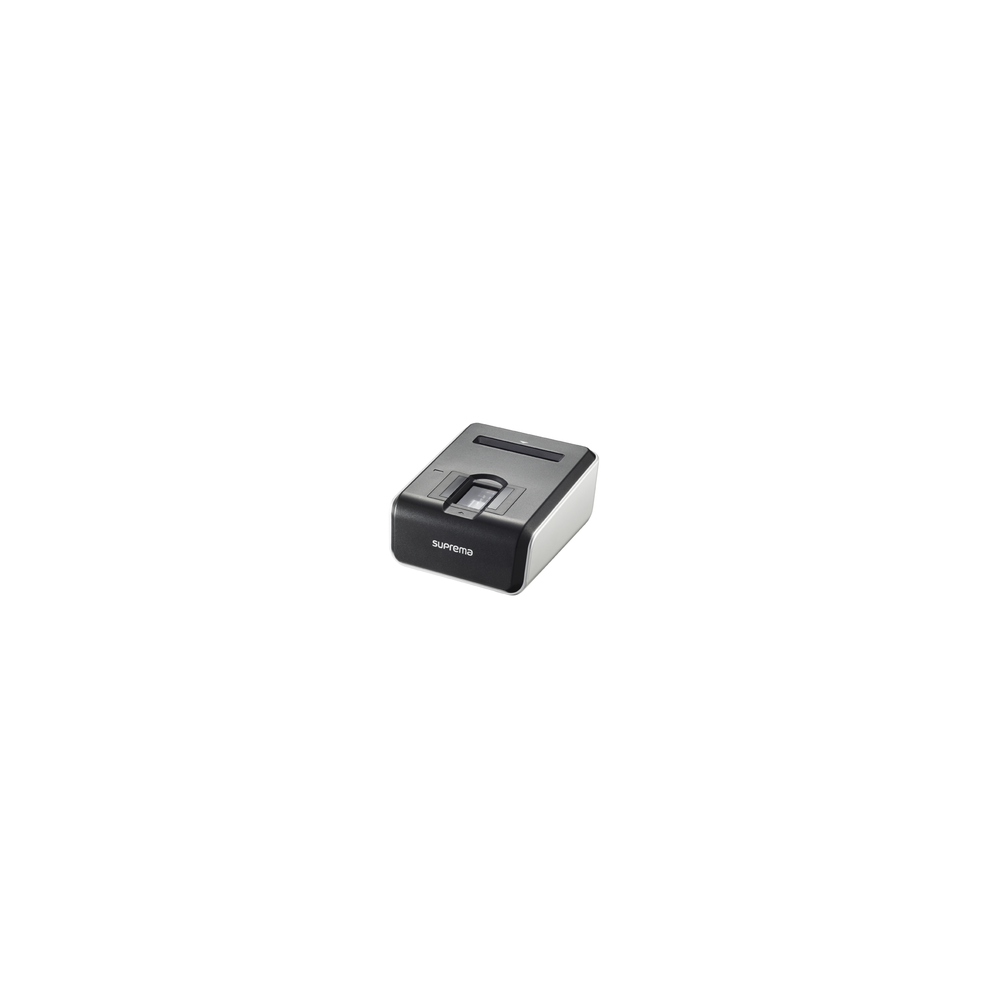

BioMini Combo, terminal de enrolamiento de tarjeta de contacto y de huella digital
BioMini Combo, terminal de enrolamiento de tarjeta de contacto y de huella digital
Modelo: SUP-BMC
Marca: SUPREMA
Especificaciones:
Especificaciones
Soporta tarjetas inteligentes de contacto (SUPBMC) y sin conctacto (SUPBMCD)
| Tipo de sensor |
Optico |
| Resolucion/escala de gris |
500 ppi / 256 levels |
| Tamaño |
18.0 x 25.4 mm |
| Area del sensor |
16.2 x 24.3 mm |
| Tamaño imagen |
320 x 480 pixels |
| Certificado |
FBI PIV and FBI Mobile ID FAP 20 |
| Formato de plantilla |
Suprema, ISO 19794-2, ANSI 378 |
| Formaro de imagen |
RAW, BMP, WSQ, ISO 19794-4 |
| Deteccion dedo Vivo |
Supported |
| Rango proteccion IP |
IP65(Sensor Surface) |
| |
|
| |
|
| USB |
2.0 High Speed
CCID, PC/SC driver |
| Temperatura operacion |
-10 ~ 50°C |
| Humedad operacion |
10 ~ 90% non-condensing |
| Certificacion |
CE, FCC, KC, RoHS, UL, USB-IF, WHQL |
| Dimensiones(W x L x H) |
95.7 x 114.8 x 52.6 mm |
| Peso |
280g |
| Sistemas operativos compatibles |
Windows XP, Vista, 7, 8, 8.1, 10 32/64bit
Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
Android 4.1(Jelly Bean) and Above |
Nota.- Este producto no es compatible con el software Biostar 2, Solo es para uso de profesioanles en desarrollo de software.
Nota1.- SUPBMC lector de huella con lector de tarjeta de contacto
Nota2.- SUPBMCD lector de huella con lector de tarjeta de sin contacto
Nota.- EL SDK tiene costo.
