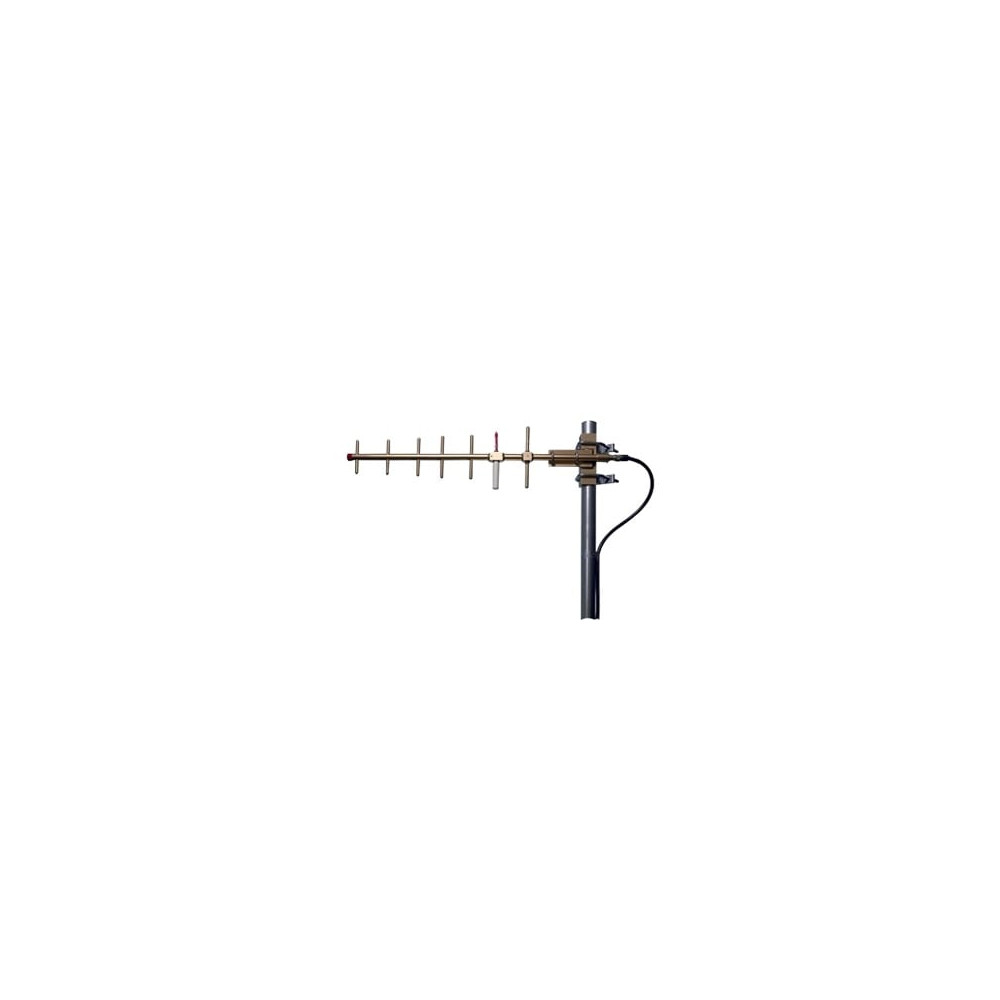

Antena Yagi, 890 - 960 MHz, 60º ancho horizontal, inclinación eléctrica fija, diámetro de la tubería del montaje: max. 3"



-Rugged, durable design
-Enclosed driven element protects against icing, water penetration, and corrosion
-Unique mounts allow vertical or horizontal polarization

Electrical Specifications:
• Frequency band: 890 - 960 MHz
• Gain: 12.1 dBi
• Horizontal beamwidth: 60º
• Vertical beamwidth: 30º
• Beam tilt: 0º
• Front-to-back ratio at 180º: 15 dB
• VSWR / Return loss: 1.5 / 14.0 dB
• Max. Input power per port: 150 Watts
• Polarization: Vertical
• Impedance: 50 Ohms

General:
• Antenna brand: ANDREW®
• Antenna type: Yagi
• Band: Single band
• Operating frequency band: 890 - 960 MHz
• Includes: V-bolts
• Performance note: Outdoor usage

Mechanical:
• Color: Silver
• Lightning protection: dc Ground
• Radiator material: Aluminum
• RF connector interface: N Female
• RF connector location: Bottom
• Total RF connector quantity: 1
• Max. wind loading: 53.4 N @ 100 mph
• 12.0 lbf @ 100 mph
• Max. wind speed: 201.2 km/h / 125.0 mph

Dimensions:
• Depth: 25.4 mm / 1.0 in.
• Length: 762.0 mm / 30.0 in.
• Width: 137.2 mm / 5.4 in.
• Net weight: 2.3 kg / 5.0 lb
