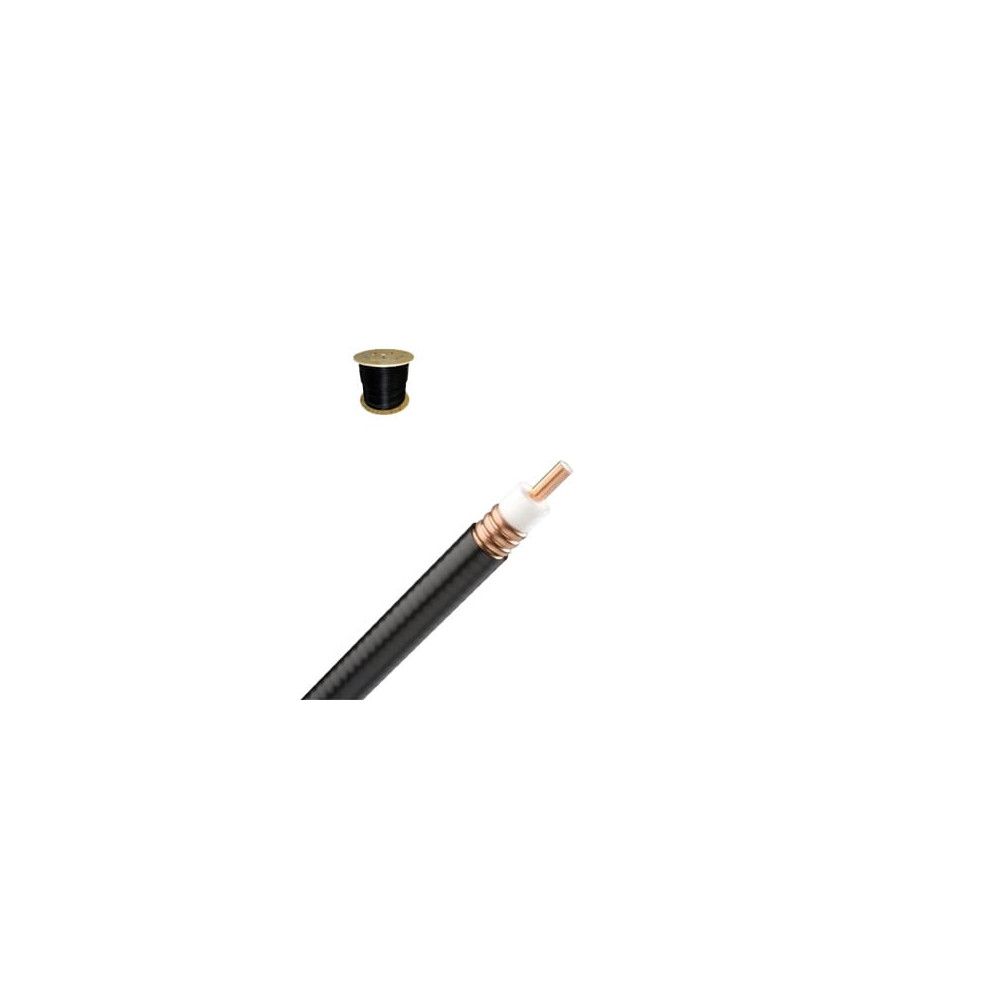

Cable coaxial HELIAX 7/8", cobre corrugado, BLINDADO, 50 Ohms, Carrete de 305 metros

ANDREW / COMMSCOPE
71386
Cable coaxial HELIAX 7/8" de cobre corrugado, 50 Ohms. Atenuación de 0.73 dB a 450 MHz. Ideal para radiocomunicación profesional.
Out of Stock
$6,798.31
IVA incluido
Cantidad

Últimas piezas!
Add to Compare
Add to Wishlist
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Información de Producto

Cable coaxial HELIAX 7/8", cobre corrugado, BLINDADO, 50 Ohms, Carrete de 305 metros

AVA5-50FX/1000

Modelo: AVA5-50FX/1000

Marca: ANDREW / COMMSCOPE

Especificaciones:


-Impedancia: 50 Ω.
-Diámetro Exterior: 28 mm.
-Factor de Velocidad: 91 %.
-Atenuación en 30 mts UHF 450 MHz: 0.73 dB.
-Atenuación en 30 mts UHF 800 MHz: 0.99 dB.
-Diámetro Conductor Interno (mm): 9.45.
-Aislamiento: Espuma Dieléctrica de baja densidad.
-Blindaje: Cobre corrugado sólido 100 %.
-Peso por Metro (Kg): 0.45.

Precio especial por bobina de 305 metros

Diferencias contra el AVA5-50



Conector central solido

Resistencia conector central 2.888 ohms/km | 0.88 ohms/kft

Resistencia conector exterior 1.53 ohms/km | 0.466 ohms/kft

Velocidad 90 %

Temperatura de operación -55 °C to +70 °C (-67 °F to +158 °F)

Temperatura de almacenaje -70 °C to +70 °C (-94 °F to +158 °F)



Peso 0.41 kg/m | 0.276 lb/ft

: 71386
