Comprar Transistor MOSFET P 50V 18A | Smartgrid México

Transistor de Potencia MOSFET, Canal P, 50 Volt, 18 Amp., 0.14 Ohm, 74 Watt, TO-220AB, para Analizador III.

SYSCOM
19562
Transistor de Potencia MOSFET, Canal P, 50 Volt, 18 Amp, 0.14 Ohm, ideal para aplicaciones analíticas. Potente y eficiente en tu laboratorio.
Hurry! only 5 items left in stock.
$5.16
IVA incluido
Cantidad

Últimas piezas!
Add to Compare
Add to Wishlist
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Información de Producto

Transistor de Potencia MOSFET, Canal P, 50 Volt, 18 Amp., 0.14 Ohm, 74 Watt, TO-220AB, para Analizador III.

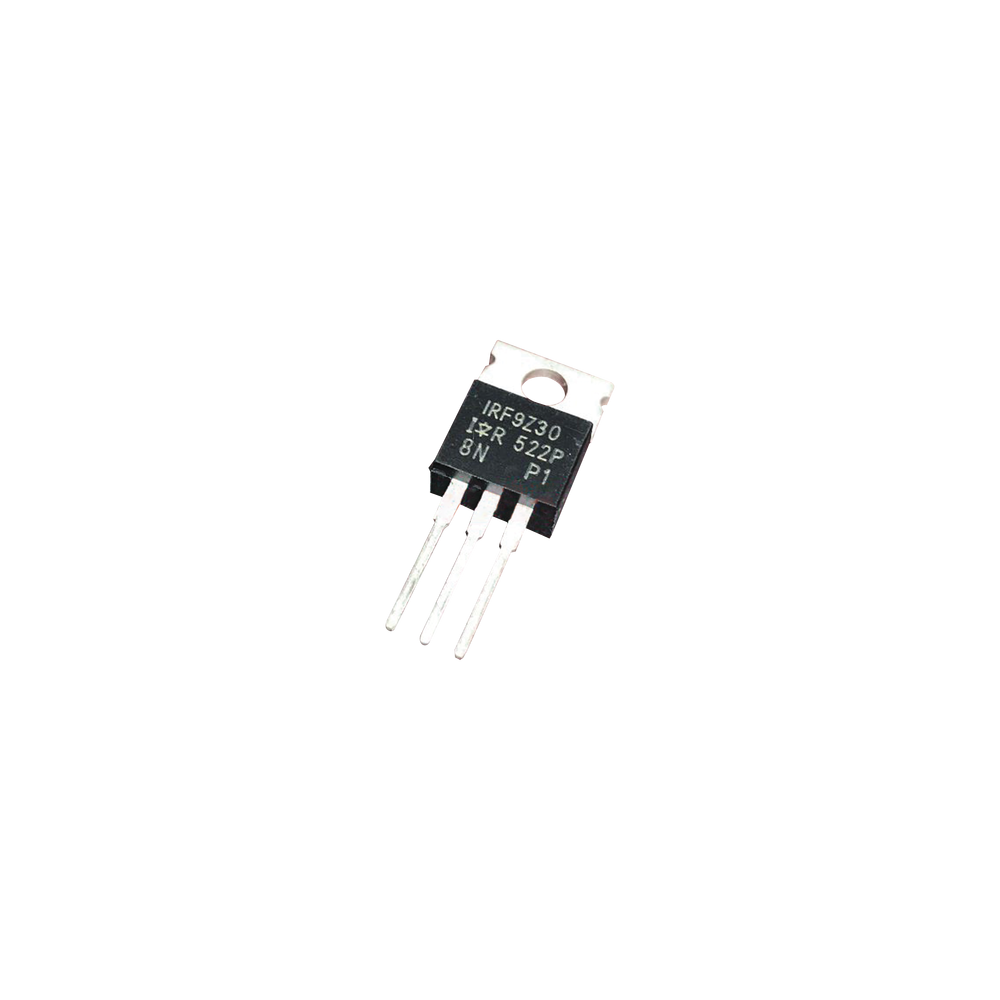

IRF9Z30

Modelo: IRF9Z30

Marca:

Especificaciones:



     Transistor de Potencia MOSFET, Canal P, 50 Volt, 18 Amp., 0.14 Ohm, 74 Watt, TO-220AB, para Analizador III.



FET Type
P-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
50 V
Current - Continuous Drain (Id) @ 25°C
18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
140mOhm @ 9.3A, 10V
Vgs(th) (Max) @ Id
4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
39 nC @ 10 V
Vgs (Max)
±20V
Input Capacitance (Ciss) (Max) @ Vds
900 pF @ 25 V
FET Feature
-
Power Dissipation (Max)
74W (Tc)
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Through Hole
Supplier Device Package
TO-220AB
Package / Case
TO-220-3
Base Product Number
IRF9Z30
