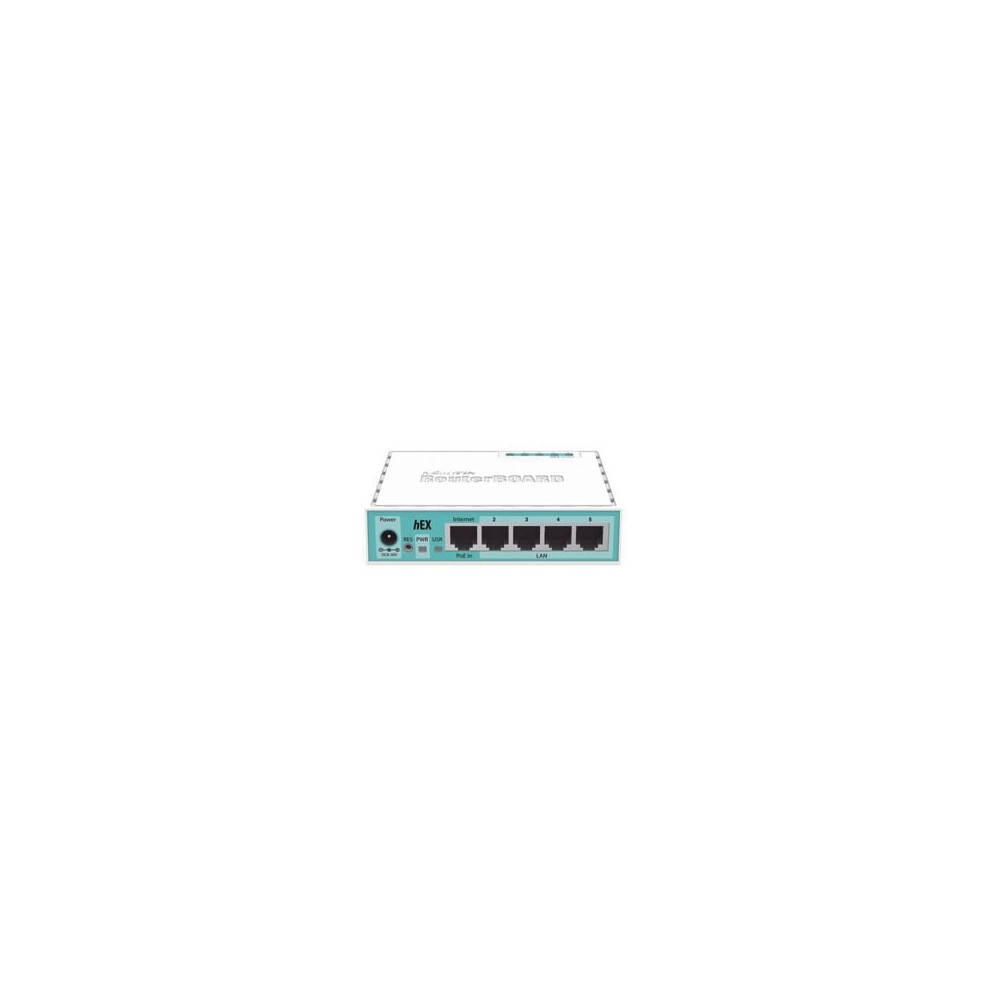

El hEX es un pequeño router Gigabit Ethernet de cinco puertos, en una caja de plástico agradable para gestionar la red cableada SOHO.
La unidad está equipada con una potente CPU de 720 MHz, 64 MB de RAM, cinco puertos Gigabit Ethernet y una licencia RouterOS L4. El dispositivo es compatible con el voltaje de entrada 6-30V de entrada y PoE pasivo.
Especificaciones
| Details |
| Product code |
RB750Gr3 |
| Architecture |
MMIPS |
| CPU |
MT7621A |
| CPU core count |
2 |
| CPU nominal frequency |
880 MHz |
| CPU Threads count |
4 |
| Dimensions |
113x89x28mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
256 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-30 + 70 C |
Powering
| Details |
| Max Power consumption |
5W |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| PoE in |
Passive PoE |
| DC jack input Voltage |
8-30 V |
| PoE in input Voltage |
8-30 V |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
5 |
Peripherals
| Details |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Ethernet test results
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Included parts
24V 0.38A power adapter
