Modelo: CBXG08C01

Marca: V-SOL

Características principales:

Hasta 1.024 ONUs (GPON) o hasta 2,048 ONUs (XGSPON).
Distancia máxima 20 Km en cada puerto PON.
8 puertos Combo GPON/XGSPON.
Relación de splitteo por puerto PON: 1:256 (XGSPON), 1:128 (GPON).
Aplicaciones: Datos (Residenciales/Empresarial), Videovigilancia, Telefonía IP, CATV.
Ancho de banda por puerto PON: Upstream 10 Gbps, Downstream 10 Gbps (XGSPON), Upstream 1.25 Gbps, Downstream 2.5 Gbps (GPON).

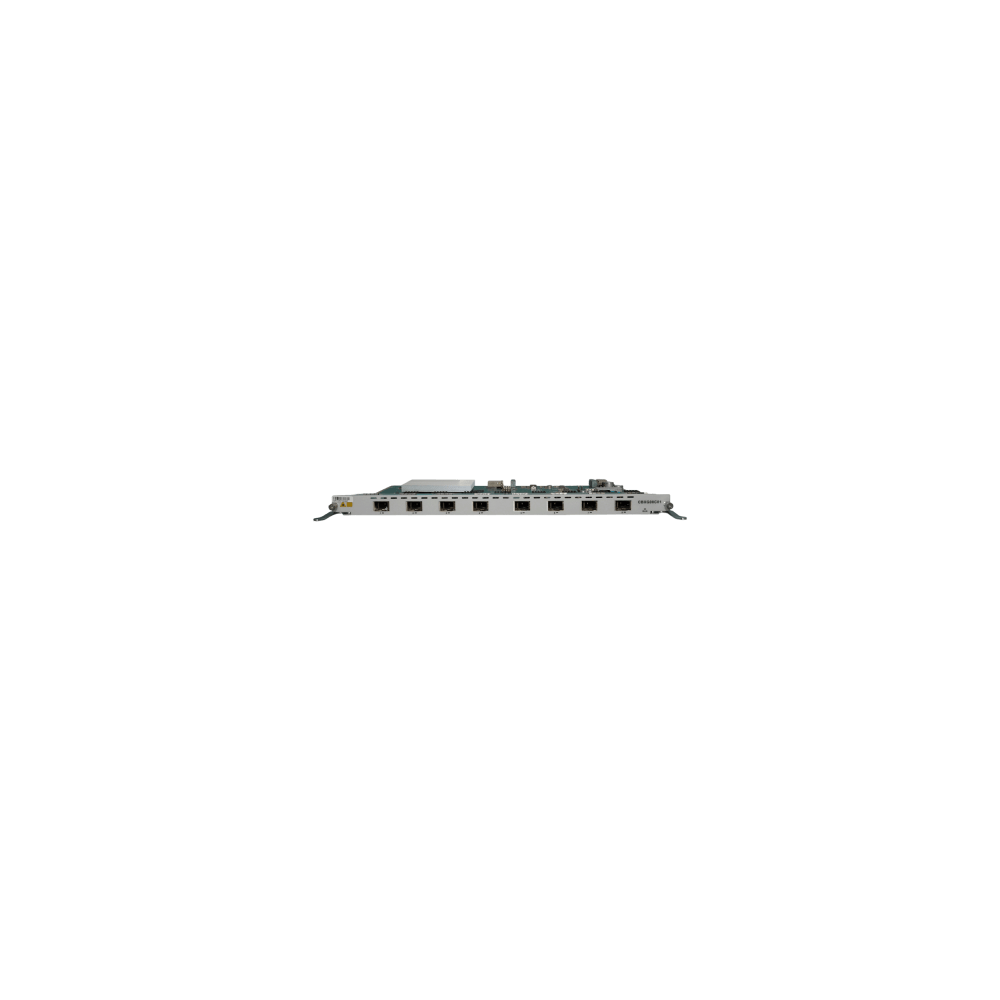

Service Card: CBXG08C01
GPON & XG(S)-PON Combo Port	QTY	8
	Physical Interface	SFP+ Slots
	Connector Type	N2_C+
GPON & XG(S)-PON Combo Port Specification (N2_C+ module)	Transmission Distance	20KM
	XG(S)-PON Port Speed	GPON: Upstream1.244Gbps, Downstream 2.488Gbps XG-PON: Upstream 2.488Gbps, Downstream 9.953Gbps XGS-PON: Upstream 9.953Gbps, Downstream 9.953Gbps
	Wavelength	GPON: Upstream 1310nm, Downstream 1490nm XG(S)-PON: Upstream 1270nm, Downstream 1577nm
	Connector	SC/UPC
	TX Power	GPON: +3dBm ~ +7dBm, XG(S)PON: +4dBm ~ +7dBm
	Rx Sensitivity	XGS-PON: -28dBm, XG-PON: -29.5dBm, GPON: -32dBm
	Saturation Optical Power	XGS-PON: -7dBm, XG-PON: -9dBm, GPON: -12dBm
