ANDREW / COMMSCOPE
79885
Out of Stock
$34.74
Tax included
Quantity

Last items in stock
Add to Compare
Add to Wishlist
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Información de Producto

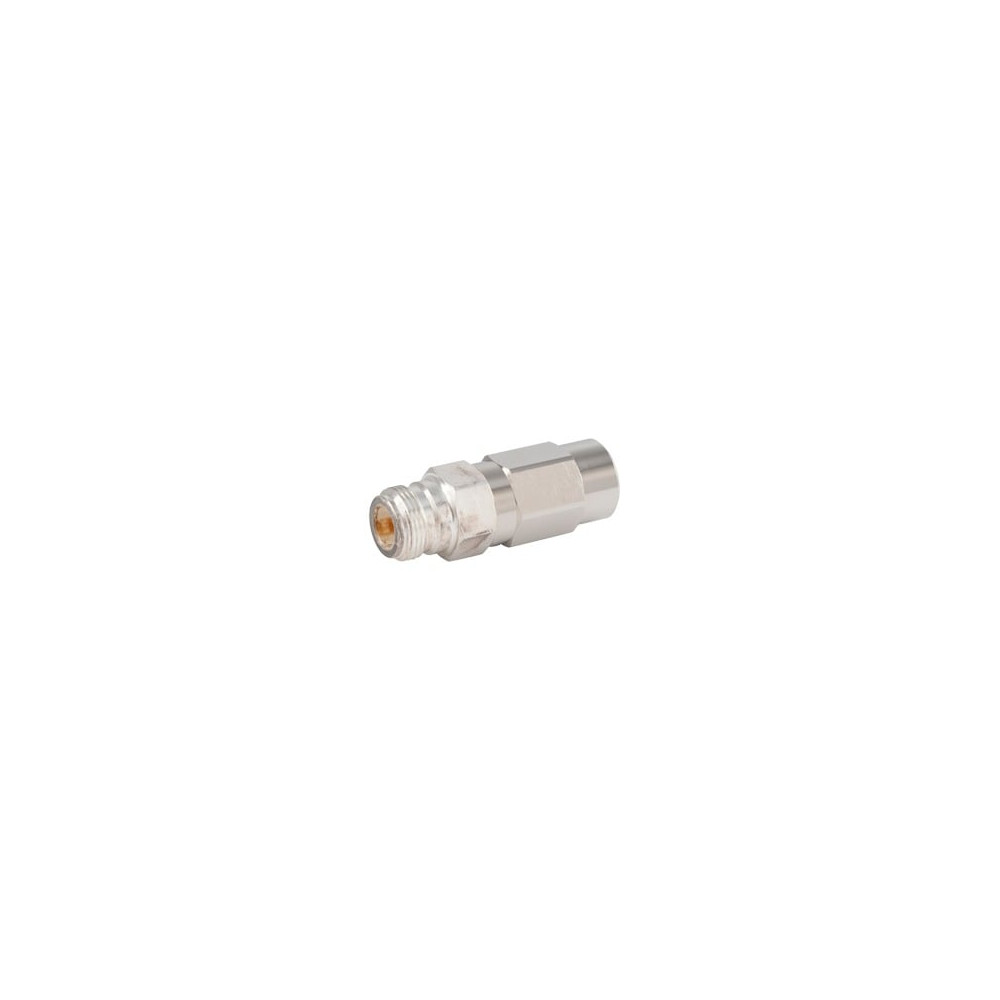

Conector N hembra para cable SFX-500

SFXANF

Modelo: SFXANF

Marca: ANDREW / COMMSCOPE

Especificaciones:

Especificaciones Electricas

Frecuencia de Operacion

 50 ohm
Operating Frequency Band   0 – 6000 MHz

Impedancia de cable

 50 ohm

3ra Orden IMD, tipica

 -115 dBm @ 1800 MHz

3ra Orden IMD Metodo de Prueba

 Dos +43 dBm carriers

Voltaje de Operación RF , máximo

(vrms)  		 707.00 V

Prueba de Voltaje CD

 2000 V

Resistencia del Contacto Externo, máximo

 0.25 mOhm

Resistencia del Contacto Interno, máximo

 1.00 mOhm
Resistencia del aislante, minimo   5000 MOhm
Poder Promedio   600.0 W @ 900 MHz
Punta de Poder, máximo   10.00 kW
Effectividad del Blindaje 110 dB
