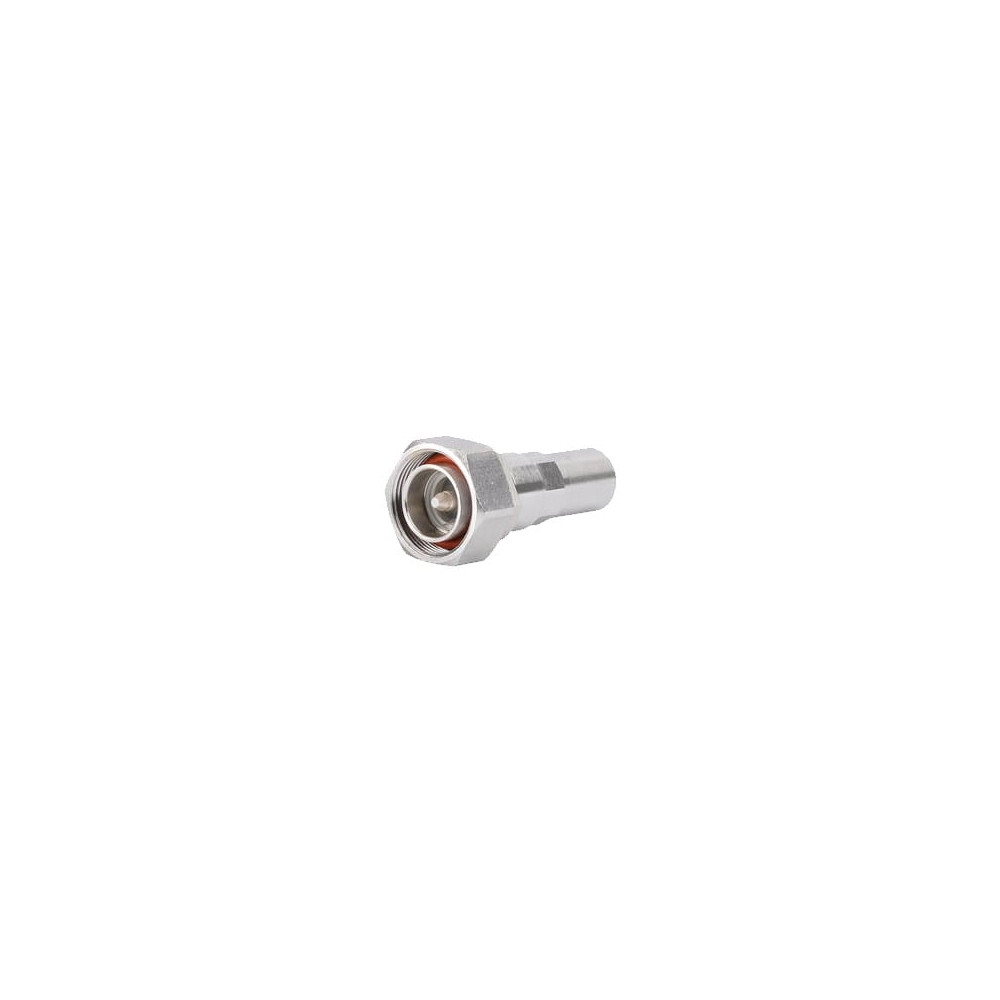

Conector DIN 7-16 macho positive stop para LDF450A
Modelo: L4TDM-PS
Marca: ANDREW / COMMSCOPE
Especificaciones:
| Especificaciones electricas |
| Impedancia |
50 ohm |
| Frecuencia de operacion |
0 – 8800 MHz |
| Impedancia de cable |
50 ohm |
| 3rd Order IMD, typical |
-120 dBm @ 910 MHz |
| 3rd Order IMD Test Method |
Two +43 dBm carriers |
| Voltaje de operacion maximo (vrms) |
1415.00 V |
| Voltaje C.D. de prueba |
4000 V |
| Resistencia de contacto externo minima |
1.50 mOhm |
| Resistencia de contacto interno minima |
0.80 mOhm |
| Resistencia minima de aislamiento |
5000 MOhm |
| Promedio de potencia |
1.1 kW @ 900 MHz |
| Pico de potencia maxima |
40.00 kW |
Perdida por incersion tipica  |
0.05 dB |
| Efectividad de blindaje |
-110 dB |
